MICROSCOPE ACCESSORIES


Adjustable Brightness LED Ring Light ​

​

Features：
56 LED ring light for stereo microscope

  • Strong and focused illumination with shadow free

  • Quantity of LED: 56

  • Adjustable Brightness Control

​

Specification：

  • -Color of light: 6000K

  • -Input voltage: AC 100~240V; 50/60Hz

  • -Power: <4.5W

  • -Output voltage: 12V DC

  • -Maximum power:＜3W

  • -Brightness: 30000 Lux ~40000 Lux

  • -Adjustable Brightness Control

  • -Lamp shell color: Black

  • -3 ft long power cord

RING LIGHT
PWR EXT CORD

Power extension cord (6 ft.) for the 144 LED Ring Light (Discontinue)

​

  • Model: HDCQ6 (6 ft.)

  • AWG: 20

  • Female: Accepts 2.1 mm x 5.5 mm size barrel plug

  • Male: 2.1 mm x 5.5 mm size barrel plug

  • Cable Type: 2468 UL: UL Component

  • Color: Black

  • Cable Length: 6 feet.

pwr ext.jpg

Innoscopes Articulating Arm

​

Specifications:

  • Part No.                        IM-32A

  • Horizontal Extension    3" (838 mm)

  • Vertical Extension        23" (590 mm)

  • Movement                    Gas Spring

  • Construction:                Aluminum, Steel

  • Table clamp                 Clearance 2" (54 mm)

  • Stow area                     4"x17"

  • Focus mount bar          1-1/4" (Φ32 mm)

  • Weight                          19 lbs

ART ARM
Dual arm

Innoscopes Dual Arm Ball Bearing Stand

​

Specifications:

  • Part No.                             IM-B32

  • Horizontal Extension        16.5" (425mm)

  • Vertical Extension             26" (660mm)

  • Movement                         Sliding

  • Construction                     Aluminum, Steel

  • Table clamp clearance     2" (54mm)

  • Focus mount bar              1-1/4" (Φ32 mm)

  • Weight                              19 lbs

​

Optional                            Steel table base stand

steel plate

Innoscopes Steel base Stand IM-32B

​

Specifications:

  • Part No. IM-32B

  • Weight 36 lbs

  • Base size 13 x 13"

  • Shown with optional Articulating arm and microscope

  • Steel pole included with Articulating arm

bolt down

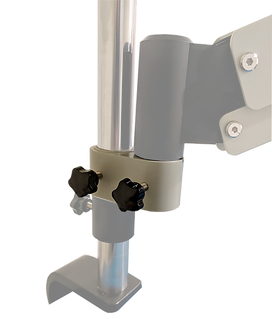

Innoscopes Bolt Down Base Mount IM-32BD

​

Specifications:

  • Part No. IM-32BD

  • Weight 0.25 lbs

  • Base size 3" Dia. (80mm)

  • Shown with optional Articulating arm and microscope

  • Steel pole included with Articulating arm and Bar arm

  • 1 year warranty


Innoscopes 4" Support Arm IM-4SA

​

Specifications:

  • Part No. IM-4SA

  • Weight 0.25 lbs

  • Horizontal Extension    4" (102 mm)

  • Shown with optional Articulating arm

  • 1 year warranty

support

Ultraviolet LED Ring Light ​

​

2 Models:

   UV-WL Ring light

   UV Ring Light

​

Features：
       Ring light for stereo microscope

  • ESD

  • Adjustable Brightness Control

​

Specification：

  • -White Light 6000K LED

  • -Ultraviolet 365nm LED

  • -Input voltage: AC 100~240V; 50/60Hz

  • -Output voltage: 12V DC

  • -Adjustable Brightness Control

  • -Lamp shell color: Black

  • -3 ft long power cord


UV LED RIng Light

UV-WL LED RIng Light

UV Light
